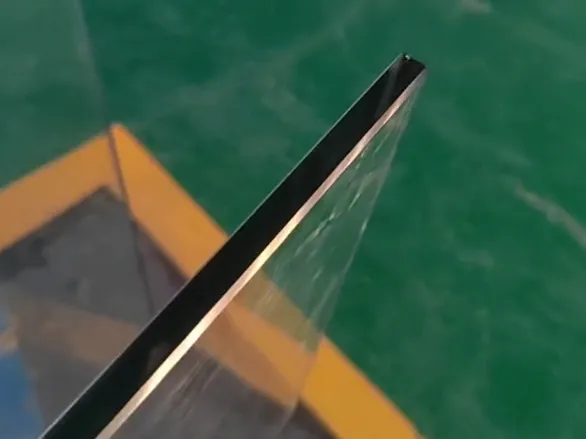

L-shaped curved tempered glass is tempered glass bent into an L-shape at right-angle corners. It is commonly used in architectural corner facades, glass railings, display cabinets, or furniture designs, combining both structural strength and the aesthetic effect of seamless right-angle joints. It is suitable for projects requiring medium to small-sized right-angle structures, especially those emphasizing a frameless design in high-end settings.
Request a Quote
Manufacturing Process
- Custom Molds
Custom L-shaped molds are required, typically made of high-temperature alloys or ceramic materials, to ensure precise molding at the right-angle corners (curvature radius is usually ≥2 times the glass thickness to avoid stress concentration). The mold is monolithic (one-time molding) and requires uniform temperature control during production.
- Heating and Softening
Flat glass is heated to 600–650°C (near the softening point) to allow plastic deformation.
- Uniform Pressing
The glass is then pressed into the L-shape using the mold, requiring precise control over pressure and temperature gradients to avoid cracking at the corners.
Features
Structural Performance
- Seamless Right-Angle Connection: Eliminates the traditional jointing issue, enhancing both the overall strength and aesthetics (e.g., glass curtain wall corners).
- High Bending Strength: After tempering, the bending strength is 3 to 5 times greater than regular glass, allowing it to bear substantial loads (e.g., glass stair treads).
- Impact Safety: When broken, it shatters into blunt-edged particles, meeting safety glass standards (such as GB 15763.2).
Functionality and Design Advantages
- High Space Utilization: The L-shape fits snugly against walls or furniture, saving installation space (e.g., L-shaped glass bar counters).
- Visual Transparency: The frameless design enhances the sense of spatial extension, ideal for modern minimalist styles.
- Custom Flexibility: Supports asymmetric L-shaped designs, where the long and short sides differ greatly.
Core Value
L-Shaped Curved Tempered Glass is the perfect combination of right-angle structure and safety performance, offering:
- Seamless Right-Angle Aesthetics: Breaks through the limitations of traditional joints, creating a clean, modern design.
- High Strength Support: Suitable for load-bearing or impact-resistant scenarios (e.g., cantilevered structures).
- Multifunctional Adaptability: Flexible for use in both architectural and home decor applications.
