Digital Ceramic Printing on Enamel Steel

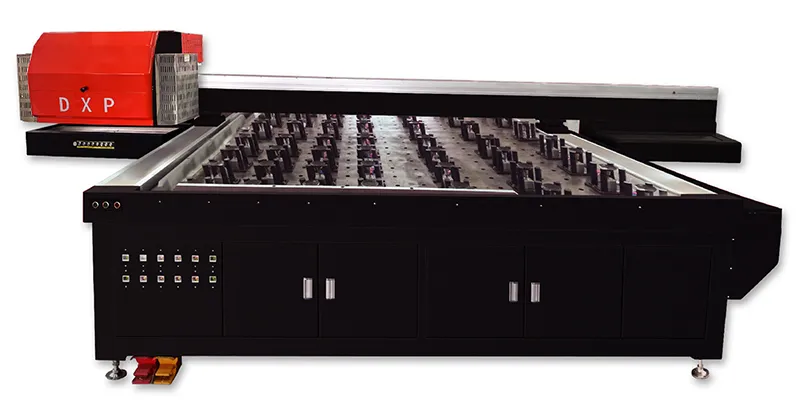

Digital Ceramic Printing Machine

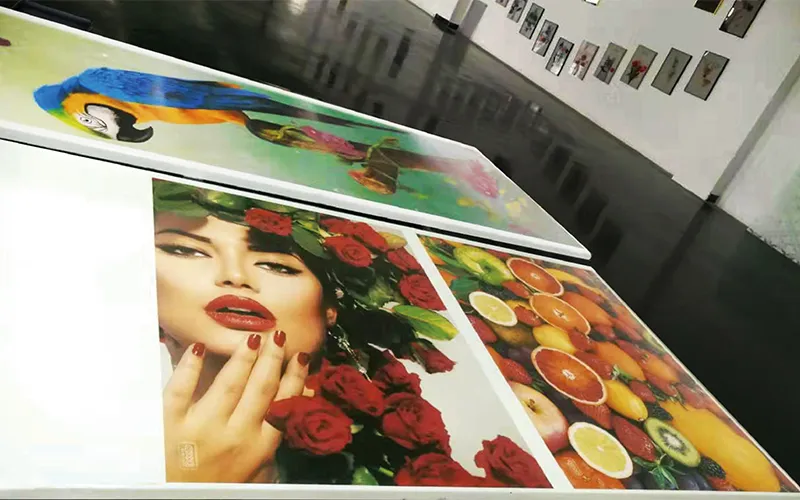

Digital printing of enamel glazes on metal surface

The digital ceramic printing machine for enamel steel is a high-performance industrial device that merges digital inkjet printing technology with high-temperature sintering. It is designed specifically for direct printing of enamel glaze patterns onto steel. Through precision printheads, specially formulated enamel glaze inks are sprayed directly onto the metal surface. This is followed by high-temperature sintering (800-950℃) to fuse the glaze with the metal base, creating a permanent, high-durability decorative or functional coating. This technology overcomes the limitations of traditional enamel processes, supporting complex designs, gradient colors, and small-batch customization, making it ideal for applications in home appliances, architecture, industrial equipment, and art installations.

Max. resolution 1600 dpi
Max. printing area 3300×7000mm
Firing temperature 800-950℃

Technical Specifications

Model	DXPG2538/DXPG2550/DXPG3060/DXPG3370
Printhead brand	StarFire, Xaar
Printhead quantity	6/12/18
Max. resolution	1600 dpi
Max. printing speed	20/40/60 m²/h
Max. printing area	2500×3800/2500×5000/3000×6000/3300×7000mm
Material thickness	0-50mm
Ink type	eco-friendly ceramic inks
Ink color	C, M, Y, K, G, W
Input format	PDF, JPEG, TIFF, EPS, AI
Power consumption	20-35 kW
Electrical requirement	Configurable according to local voltage and frequency requirements.
Environmental requirement	Independent, clean, dust-free, low light exposure, and well-ventilated.
Ambient temperature	22℃ to 28℃(72℉ to 82℉)
Relative humidity	40%-70% (non-condensing)

Main Features

High-Precision Digital Inkjet System
1. Ultra-Fine Printhead Technology: Utilizes industrial-grade piezoelectric printheads (e.g., Seiko, Konica) with a minimum droplet size of 10-25 picoliters, achieving up to 1200×1200 dpi resolution. This ensures micron-level lines and gradient effects.
2. Multi-Channel Printing: Supports CMYK + white ink + transparent glaze for multilayer printing. Perfect for base color coverage (like white ink undercoat) and surface gloss adjustment.
Special Enamel Glaze and Sintering Process
1. High-Temperature Resistant Glaze Inks: Composed of glass powder, metal oxides, and inorganic pigments. After sintering, it forms a glass-like coating with Mohs hardness ≥6, offering resistance to acids, alkalis, and abrasion.
2. Intelligent Sintering Curve: Automatically adjusts the heating rate, peak temperature, and holding time based on substrate thickness and glaze formulation. This ensures optimal bonding between the glaze layer and metal while preventing cracks through gradient temperature control.

Applications

Home Appliances: Stovetops, oven panels, microwave enclosures
Architecture: Facades, decorative panels, signage
Industrial Equipment: Control panels, protective covers

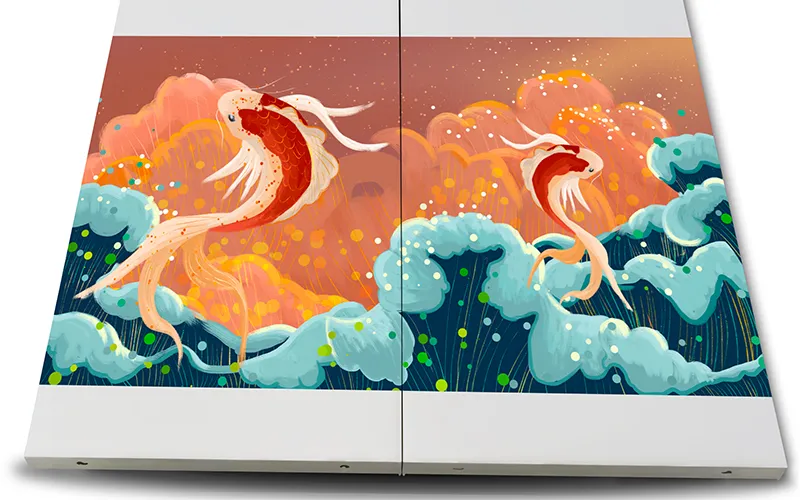

Art Installations: Metal sculptures, decorative elements
