Digital Ceramic Printing Machine

Digital Ceramic Printing on Glass Border

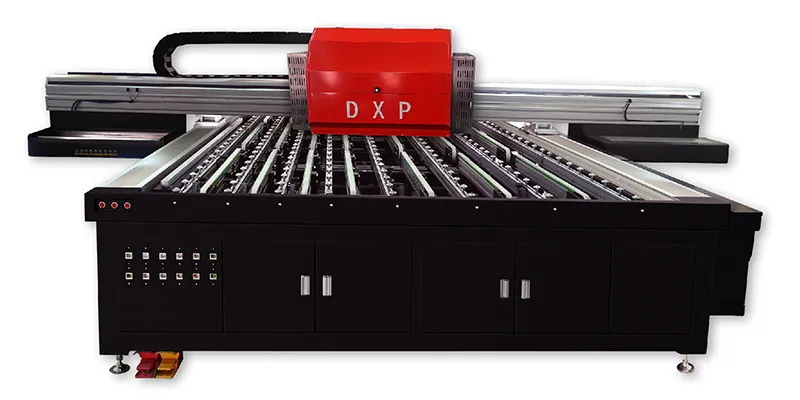

Digital Ceramic Printing Machine

Digital printing of ceramic inks on glass borders or desired area

The high-temperature glass single-color border printer is an industrial device designed specifically for printing single-color borders on glass surfaces, combining digital printing technology with high-temperature sintering processes. Its core function is to spray ceramic inks onto the edges or specified areas of glass using high-precision printheads, followed by high-temperature treatment (600-850℃) to bond the ink with the glass, forming a durable border.

  • Max. resolution 2160 dpi
  • Max. printing area 3300×9000mm
  • Firing temperature 600-850℃

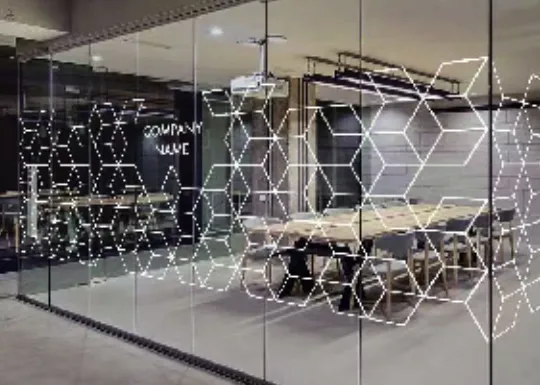

Sample Display

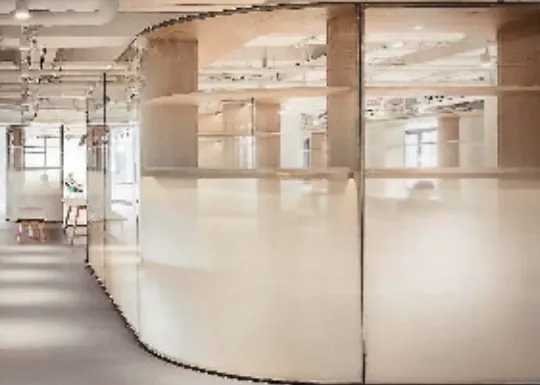

Sample Display
Sample Display
Sample Display
Technical Specifications
Model DXPG2538/DXPG2550/DXPG3060/DXPG3390
Printhead brand Xaar
Printhead quantity 4/8/12
Max. resolution 2160 dpi
Max. printing speed 70 m²/h
Max. printing area 2500×3800/2500×5000/3000×6000/3300×9000mm
Material thickness 0-50mm
Ink type eco-friendly ceramic inks
Ink color black/white (single color printing), black (border printing)
Input format PDF, JPEG, TIFF, EPS, AI
Power consumption 20-35 kW
Electrical requirement Configurable according to local voltage and frequency requirements.
Environmental requirement Independent, clean, dust-free, low light exposure, and well-ventilated.
Ambient temperature 22℃ to 28℃(72℉ to 82℉)
Relative humidity 40%-70% (non-condensing)
Main Features
  • Precise Single-Color Printing System
    1. Custom color inks: Supports custom formulas for single-color ceramic inks such as black and white, designed for border shading, anti-reflection, or decorative purposes (e.g., black ink with shading rate > 95%).
    2. High-precision alignment: Uses a vision positioning system (CCD camera + laser distance measurement) to adapt to varying glass thicknesses (4-19mm), ensuring printing position accuracy of less than ±0.1mm.
    3. Edge uniformity control: Dynamically adjusts ink volume to avoid ink buildup or discontinuities at the glass edge caused by curvature or cutting burrs.
  • High-Temperature Sintering Integrated Process
    1. Integrated tempering furnace: Some models are connected to a tempering line to achieve a fully automated process from "printing-drying-sintering-tempering," with the border hardness reaching Mohs 7, providing excellent scratch resistance.
  • Efficient Production & Automation
    1. High-speed printing mode: Utilizes a pattern inspection printing method or a scanning-type printing method, specializing in single-color printing (e.g., automotive black). Delivers exceptional performance in automotive glass, advertising glass, and other fields, with linear motor-driven printheads achieving speeds up to 40m/min, and a daily output of over 500m².
    2. Intelligent ink management: The closed-loop ink supply system continuously monitors ink viscosity and temperature, preventing sedimentation and clogging, minimizing downtime for maintenance.
