Digital Printing on Aluminum

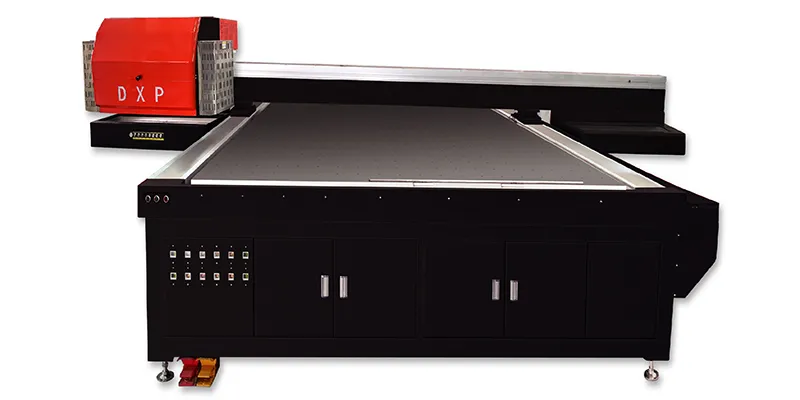

Digital Printing Machine

Digital printing of water-based inks on the surface of aluminum sheet

The digital printing machine for aluminum is an industrial-grade device specifically designed for surface decoration and functional coatings on aluminum sheets. It combines digital inkjet technology with high-temperature curing processes. Its core technology uses high-precision printheads to spray special ceramic or metallic-based inks onto the aluminum surface. The printed aluminum is then subjected to high-temperature treatment (200-500℃), enabling the ink to fuse with the substrate, creating a highly adhesive, weather-resistant coating. This technology surpasses the limitations of traditional spraying and anodizing processes, allowing for complex patterns, gradient colors, and small-batch customization. It is widely applied in architectural facades, traffic signage, electronic devices, and industrial components.

Max. resolution 1600 dpi
Max. printing area 3300×7000mm
Firing temperature 200-500℃

Technical Specifications

Model	DXPG2538/DXPG2550/DXPG3060/DXPG3370
Printhead brand	StarFire
Printhead quantity	6/12/18
Max. resolution	1600 dpi
Max. printing speed	20/40/60 m²/h
Max. printing area	2500×3800/2500×5000/3000×6000/3300×7000mm
Material thickness	0-50mm
Ink type	eco-friendly water-based inks for aluminum substrate
Ink color	C, M, Y, K, G, W
Input format	PDF, JPEG, TIFF, EPS, AI
Power consumption	20-35 kW
Electrical requirement	Configurable according to local voltage and frequency requirements.

Environmental requirement	Independent, clean, dust-free, low light exposure, and well-ventilated.

Ambient temperature	22℃ to 28℃(72℉ to 82℉)
Relative humidity	40%-70% (non-condensing)

Technical Advantages Over Traditional Methods

Comparison Item	High-Temperature Digital Printing	Traditional Spraying/Anodizing
Pattern Complexity	Supports full-color gradients, high-definition photos	Monochrome/simple color matching, blurred details
Production Flexibility	No need for plates, minimum order of 1 piece, instant design change	Plate/mask costs are high, only suitable for large batches
Material Utilization	Precise inkjet printing, waste < 2%	Over-spraying waste 20%-40%
Environmental Impact	Water-based ink, no heavy metal wastewater	Chromium passivation treatment is difficult

Main Features

High-Precision Digital Inkjet System
1. Advanced Printhead Technology: Equipped with industrial-grade printheads capable of delivering 1600 dpi resolution for sharp, vibrant images.
2. Multi-Layer Printing Capability: Supports detailed gradient patterns, textures, and even metallic finishes.
High-Temperature Curing Process
1. Enhanced Adhesion: Through high-temperature curing (200-500℃), the ink permanently bonds with the aluminum surface, providing exceptional durability.
2. Weather Resistance: Coatings are highly resistant to UV radiation, moisture, and corrosion, making them ideal for outdoor applications.
Broad Application Range

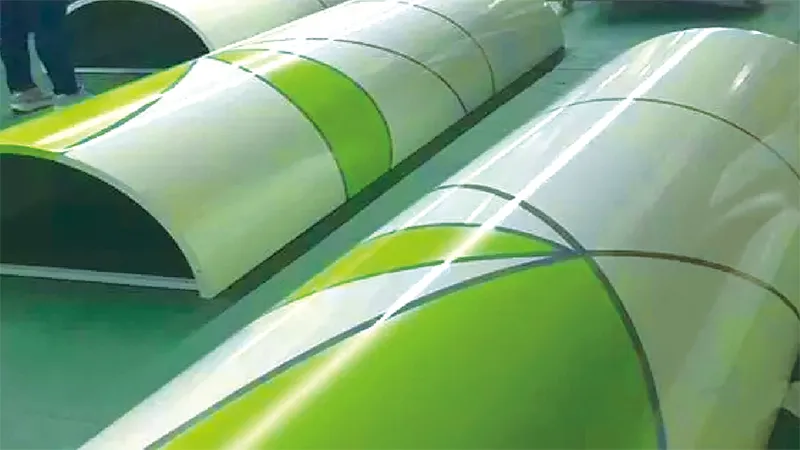

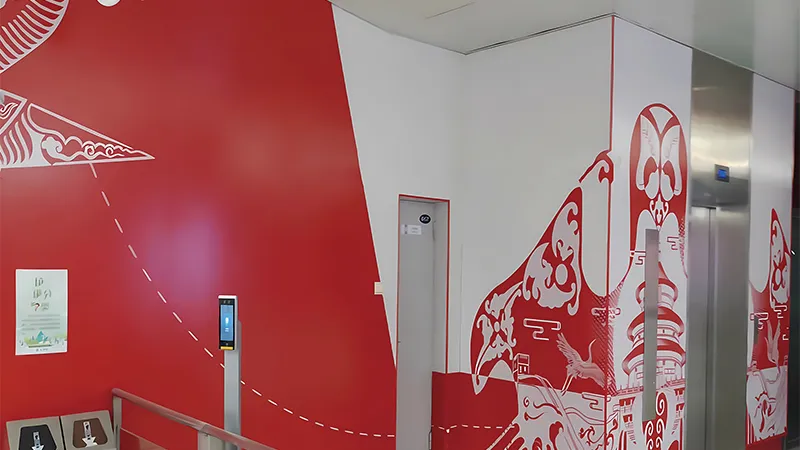

1. Architectural facades and decorative panels
2. Traffic signs and public information boards
3. Electronic device casings and industrial components
Small Batch Customization and Flexibility
1. Perfect for custom designs, limited runs, and prototype manufacturing without the need for large-scale setup costs.

Applications

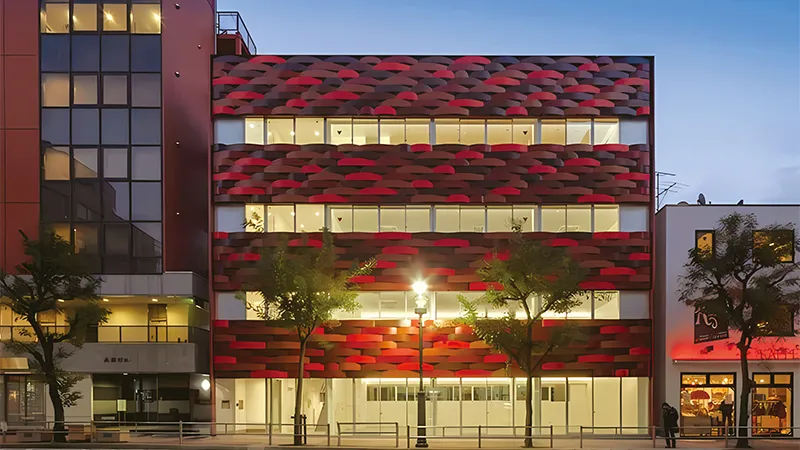

Architectural Facades: Durable and weather-resistant aluminum panels for modern building designs.
Traffic Signage: High-definition prints with enhanced visibility and durability.
Electronic Devices: Customizable surface designs with metallic finishes.
Industrial Components: Corrosion-resistant coatings for extended lifespan.
